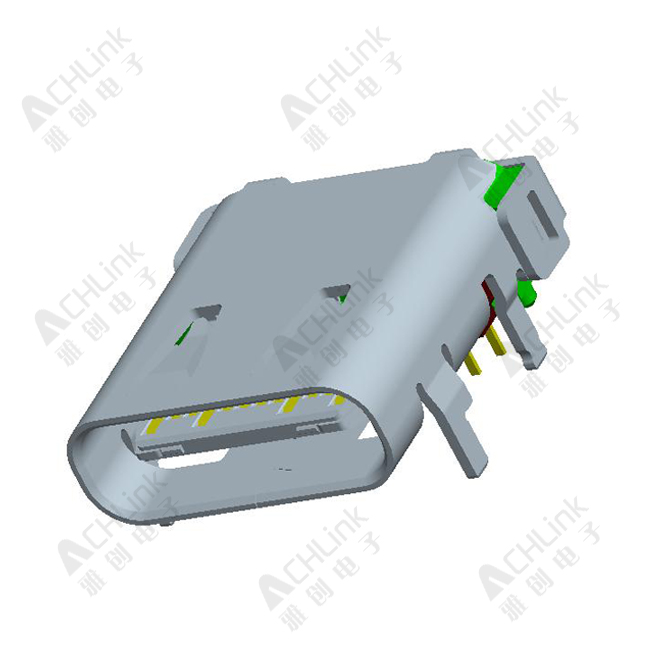

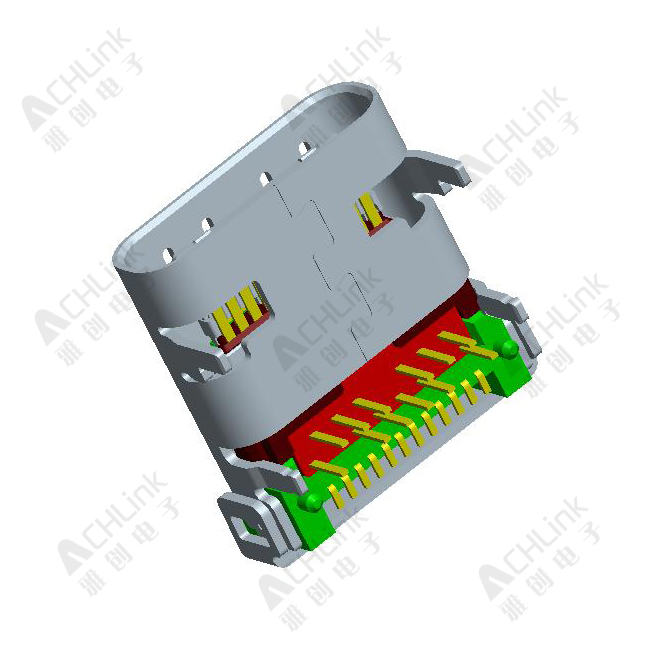

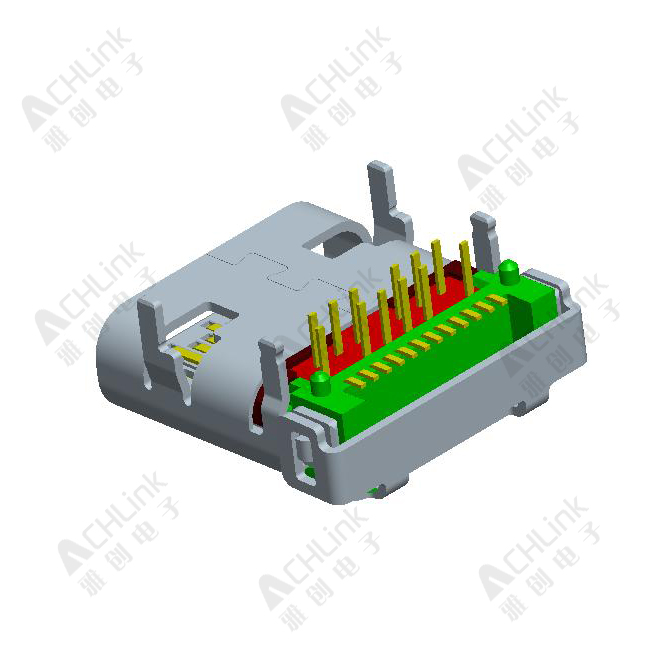

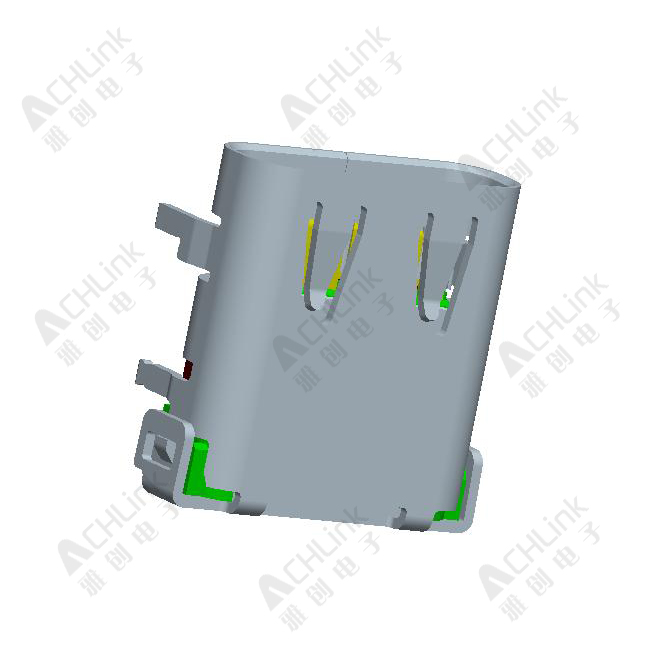

- TYPE-C母座 前插后贴 带缺口 脚长1.55
PRODUCT MODEL:A14-140-0023
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL

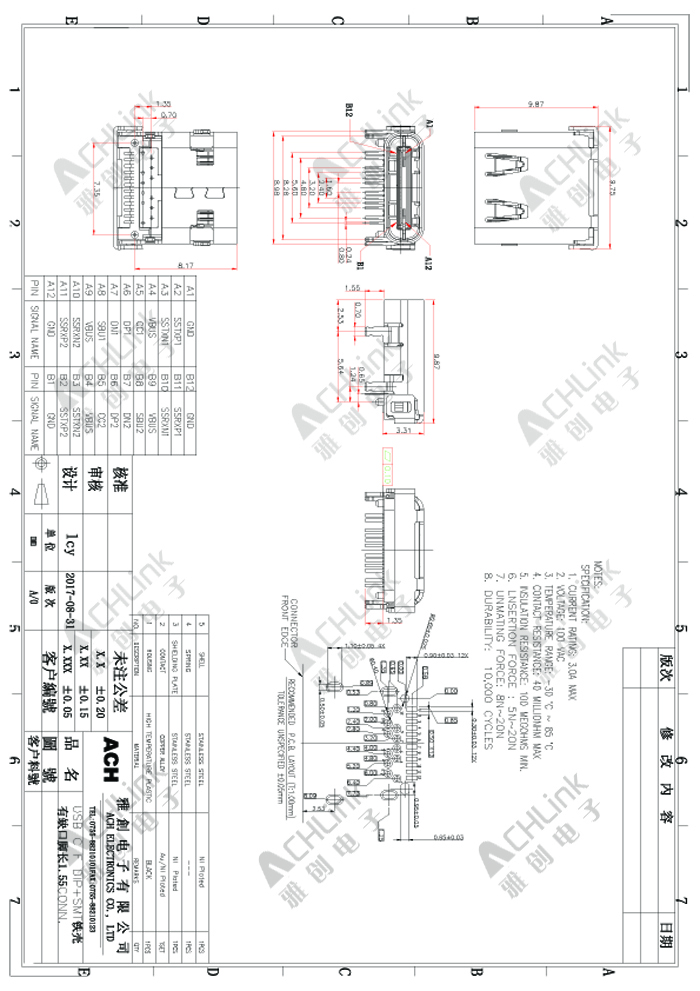

PDF文档:
