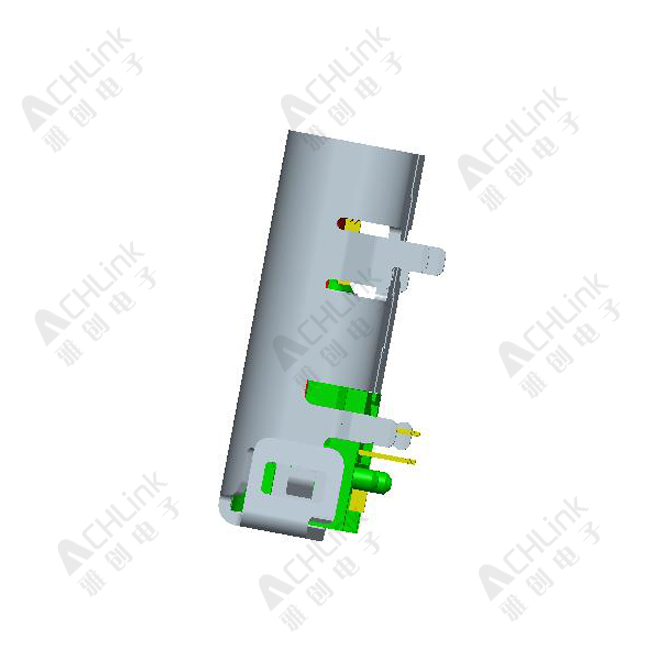

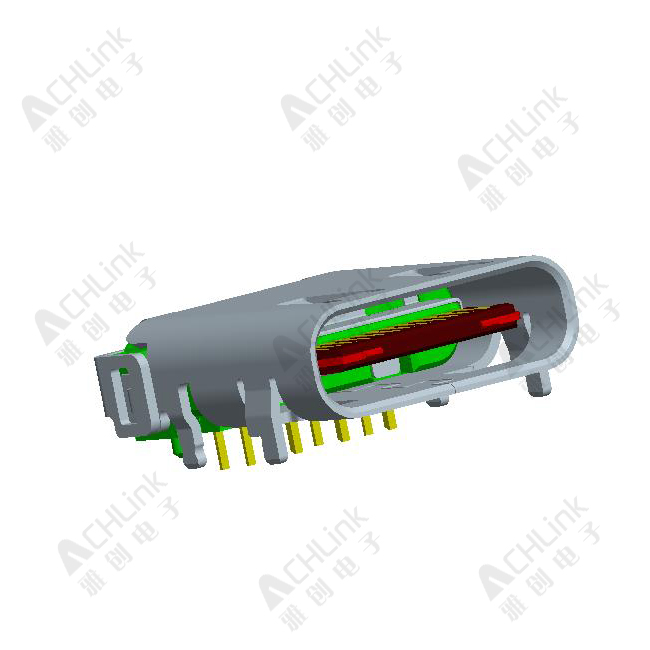

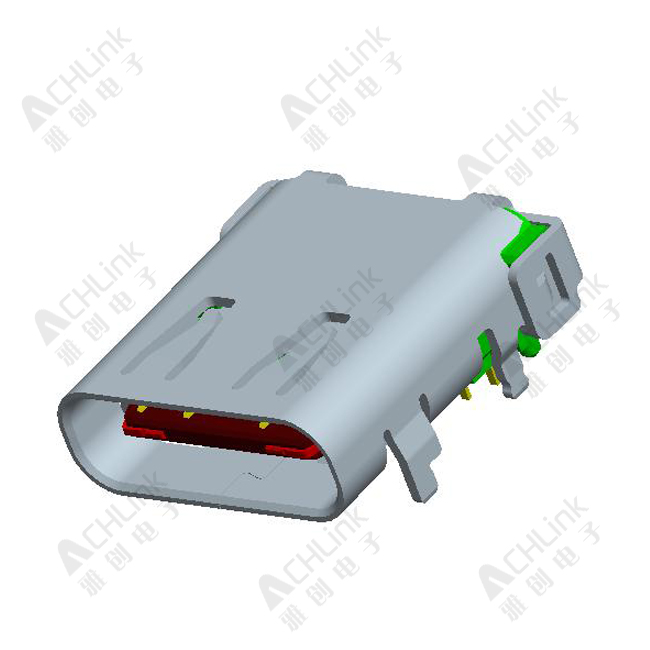

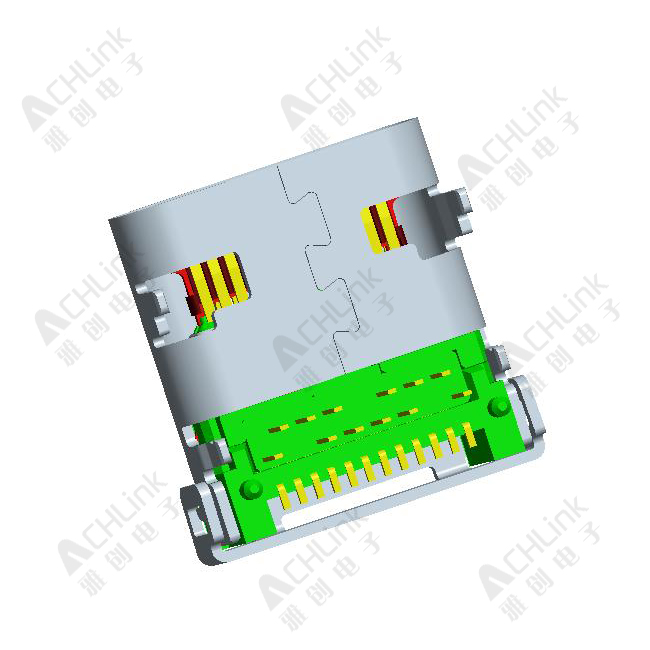

- USB 3.1 CF SMT 前插后贴 脚长0.9
PRODUCT MODEL:A14-140-0024
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL
