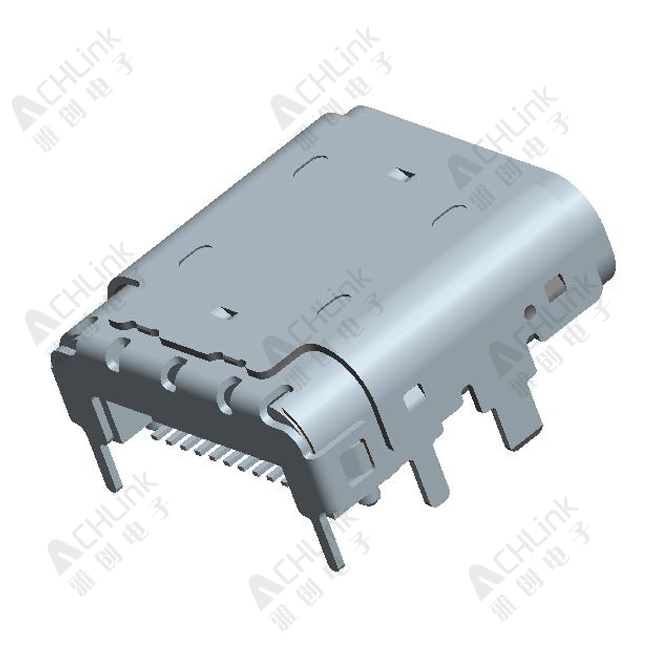

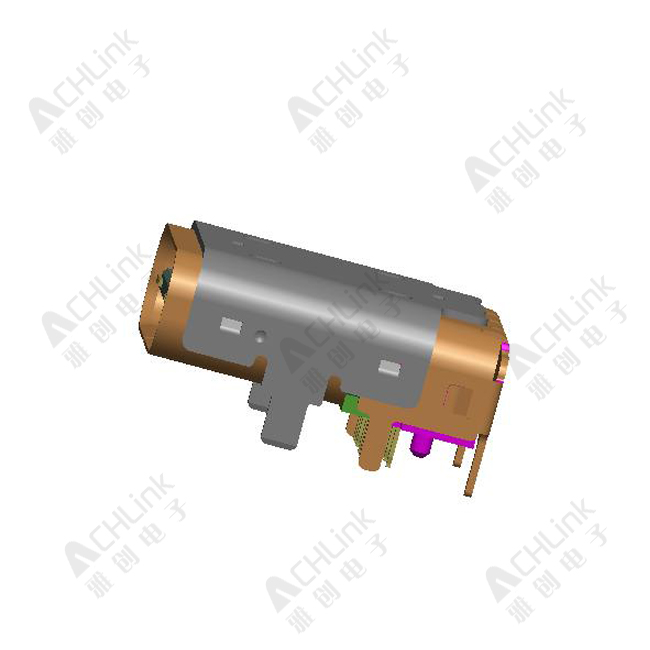

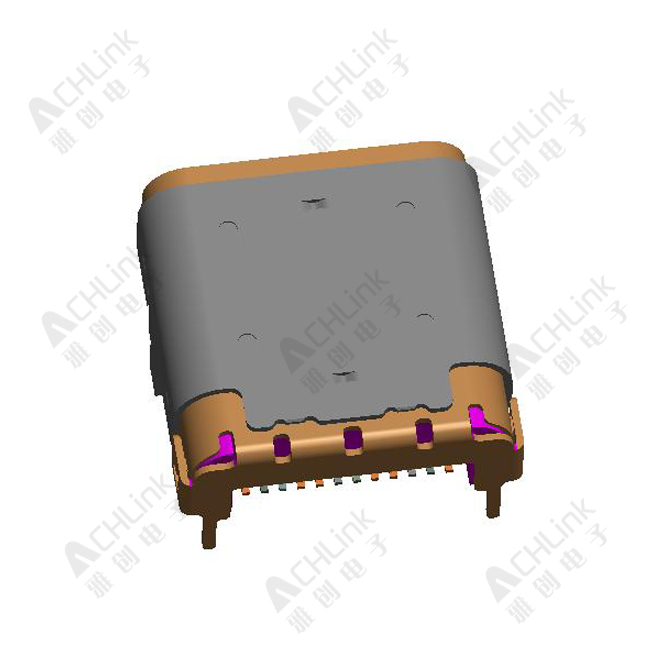

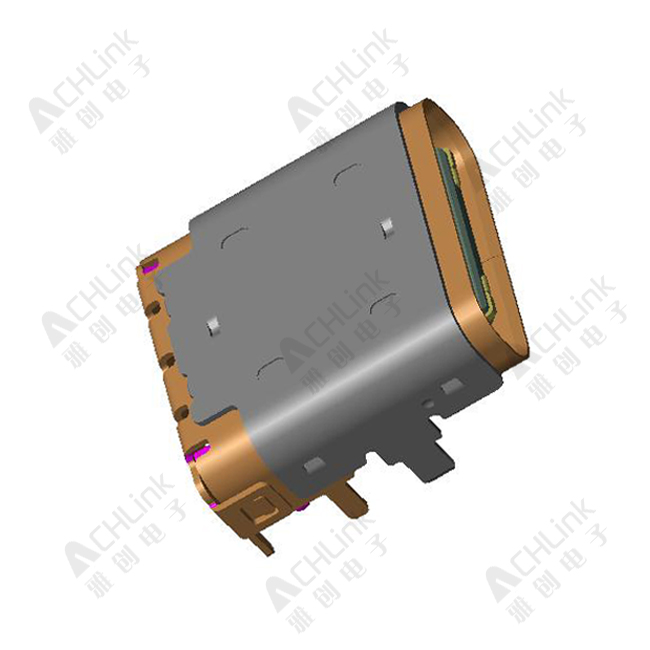

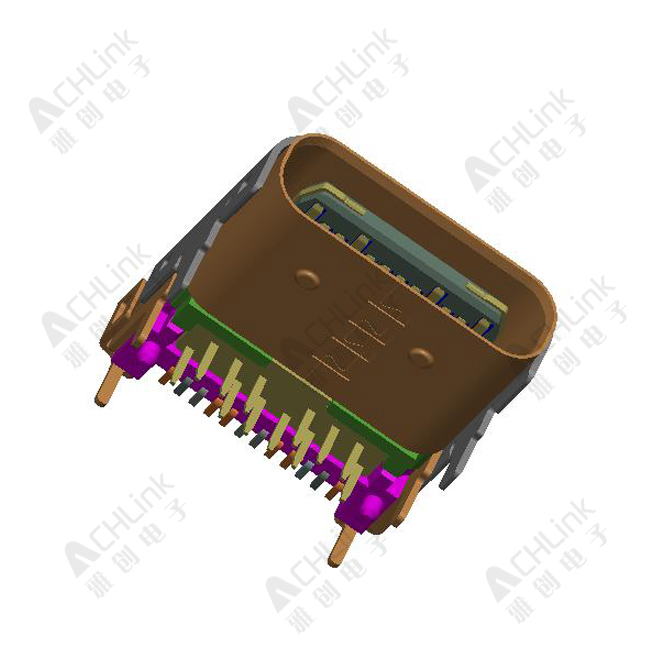

- TYPE-C 3.1 CF DIP+SMT 带铁壳
PRODUCT MODEL:A14-140-0028
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL
INTERFACE TYPE: USB TYPE-C
PRODUCT SPECIFICATIONS: TYPE-C CONNECTOR SINGLE ROW 24PIN
CONTACT RESISTANCE:40MILLIONHM MAX
INSULATION RESISTANCE:100 MEGOHMS MIN
LNSERTION FORCE:5N~20N
UNMATING FORCE:8N~20N
DURABILITY:10000CYCLES
COLORS: BLACK
PACKING FORM: REEL

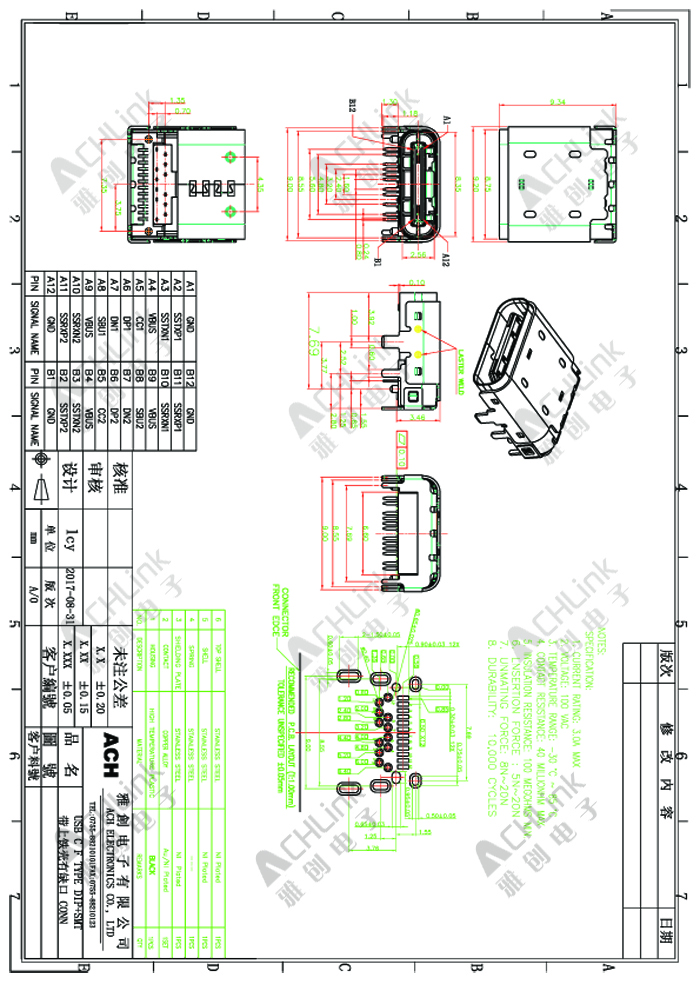

PDF文档:
