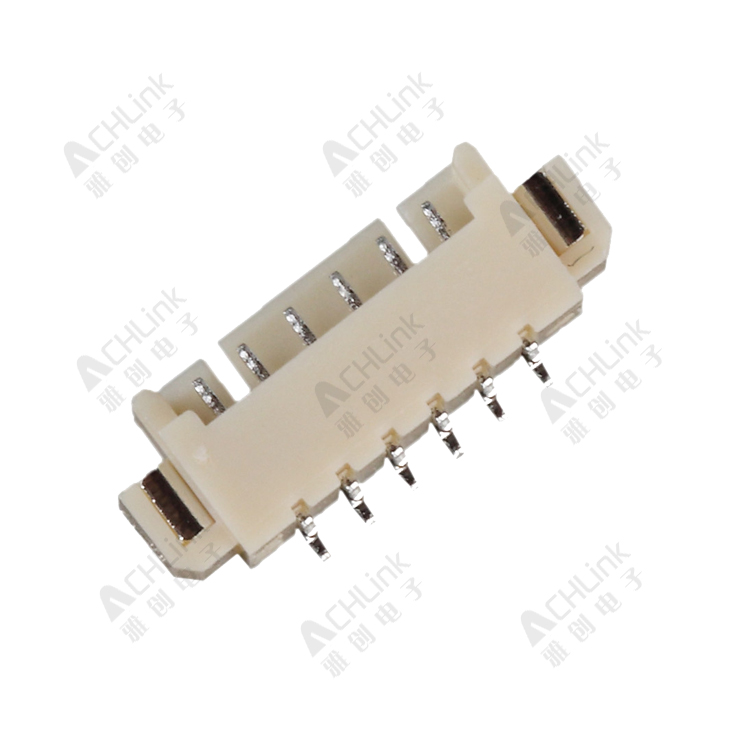

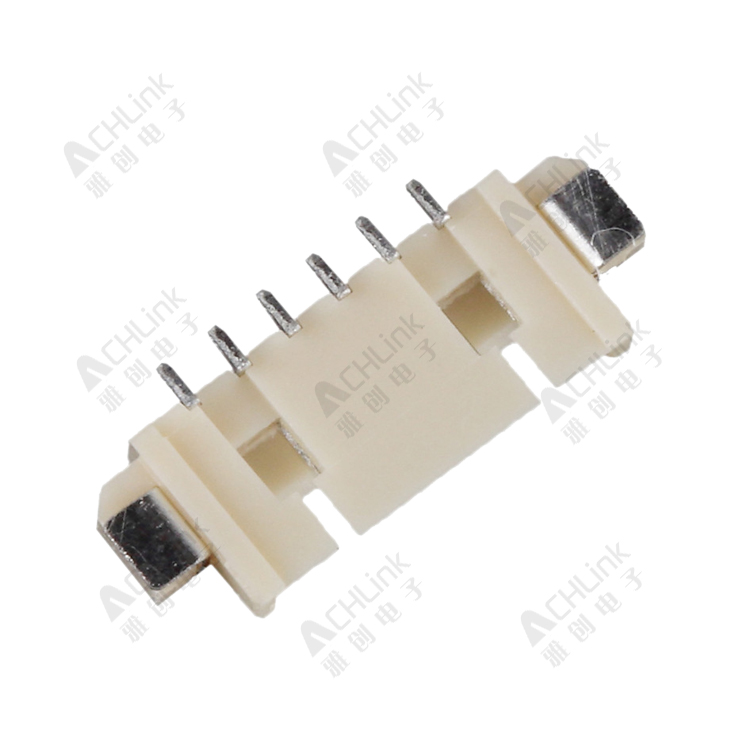

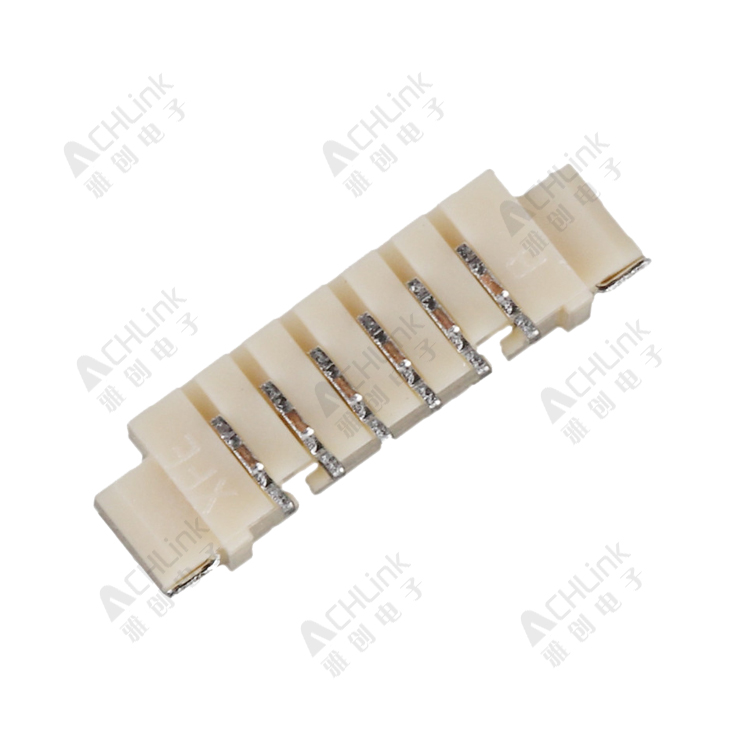

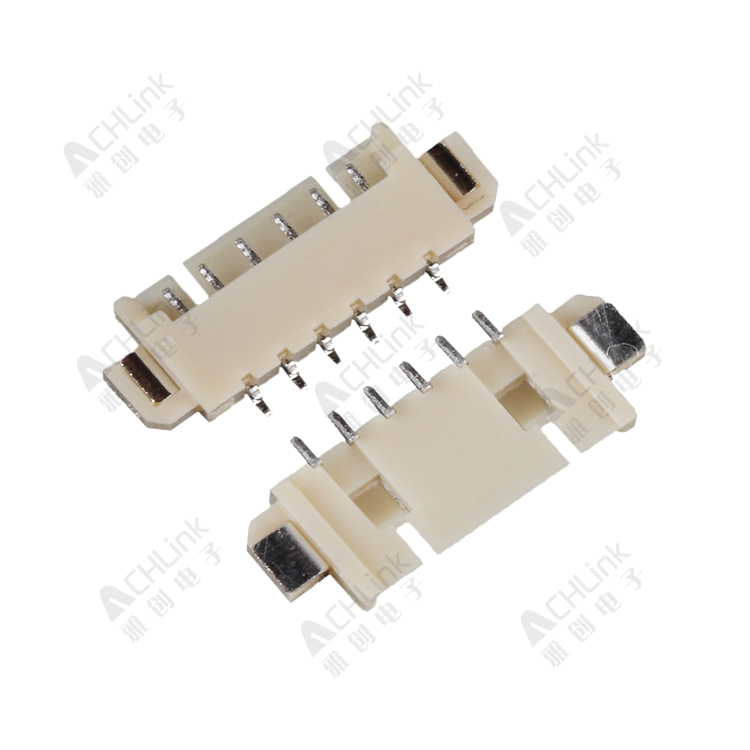

WAFER PH1.25MM 单排  卧式贴片  (JST)
左滚动
  • WAFER PH1.25MM 单排  卧式贴片  (JST)
  • WAFER PH1.25MM 单排  卧式贴片  (JST)
  • WAFER PH1.25MM 单排  卧式贴片  (JST)
  • WAFER PH1.25MM 单排  卧式贴片  (JST)
右滚动
  • WAFER PH1.25MM 单排 卧式贴片 (JST)
PRODUCT MODEL:7011-XXX-0001
Current rating: 1.0A AC/DC(AWG #28)
Voltage rating: 50V AC/DC
Operating Temperature Range: -25℃~+85℃
Storage Temperature Range: -10 to +60℃
Applicable wires: AWG32#~28#,
Insulation O.D. 0.4~0.8mm(0.016"to 0.031")
Material
Housing:
Thermoplastic or Thermoplastic High Temp., UL94V-0
Terminal:
Copper Alloy; plating Tin over all, under plating Nickel
PDF文档:
