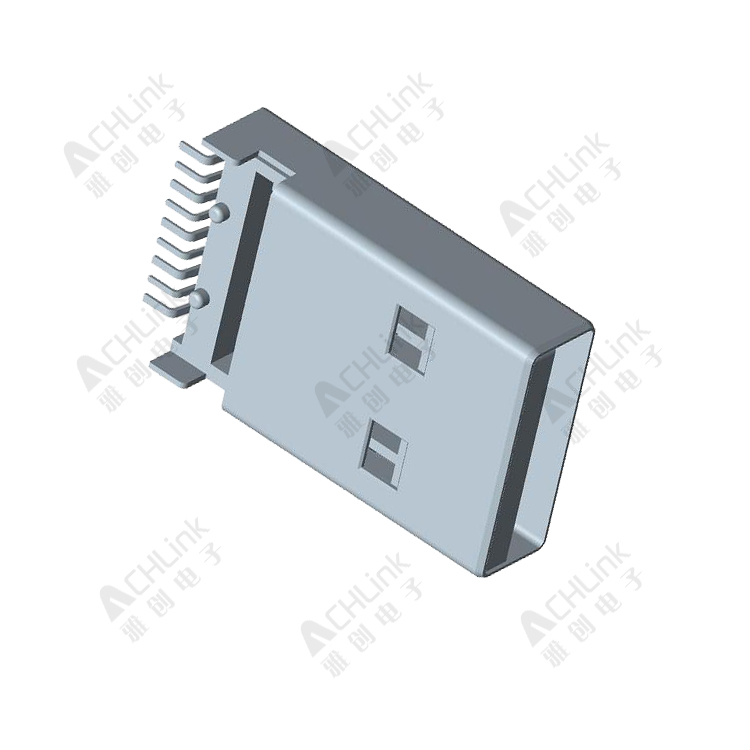

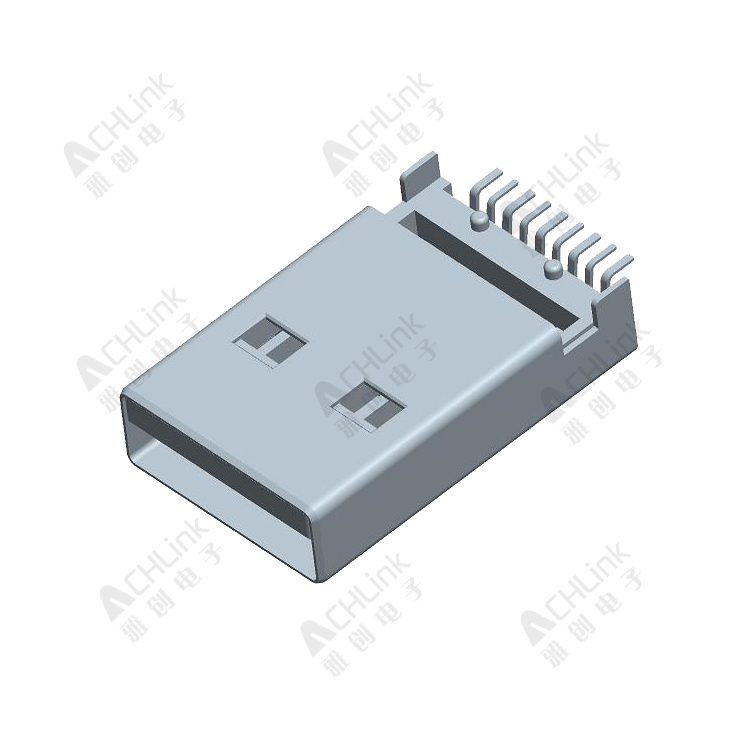

- USB 3.0 A TYPE 9P MALE .正向沉板3.2mm
PRODUCT MODEL:1042-904-0001
1. MATERIAL:
1.1 SHELL: SUS304-1/4H T=0.30mm
1.2 HOUSING: PA9T+30%G/F UL94V-0
1.3 TERMINAL-4PIN: C5210R-EH T=0.20mm
1.4 TERMINAL-5PIN: C2680R-H T=0.20mm
2. PLATING:
2.1 TERMINAL: GOLD FLASH PLATED ON CONTACT AREA
2.2 SHELL: NICKEL PLATED 50u"MIN.
3.MECHANICAL PERFORMANCE
1. MATERIAL:
1.1 SHELL: SUS304-1/4H T=0.30mm
1.2 HOUSING: PA9T+30%G/F UL94V-0
1.3 TERMINAL-4PIN: C5210R-EH T=0.20mm
1.4 TERMINAL-5PIN: C2680R-H T=0.20mm
2. PLATING:
2.1 TERMINAL: GOLD FLASH PLATED ON CONTACT AREA
2.2 SHELL: NICKEL PLATED 50u"MIN.
3.MECHANICAL PERFORMANCE
