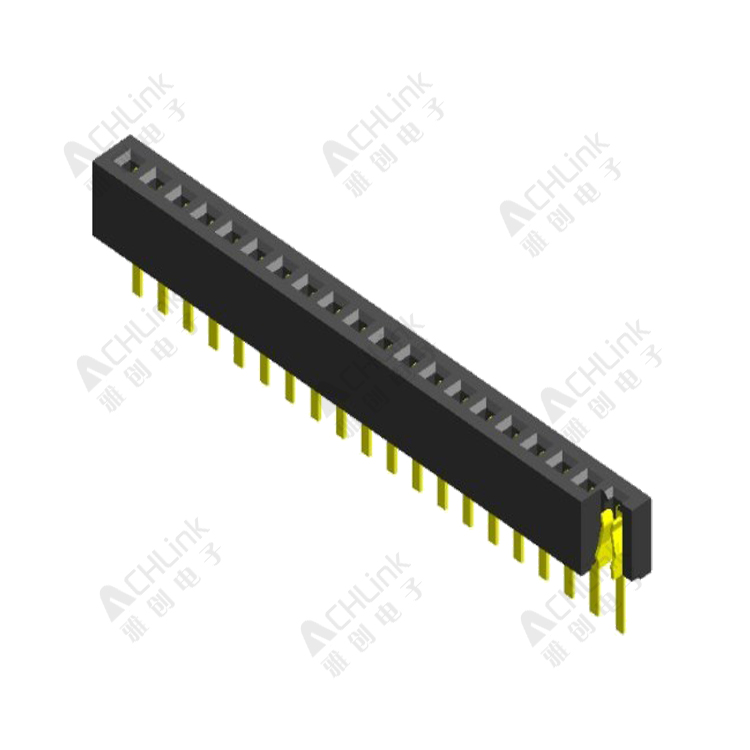

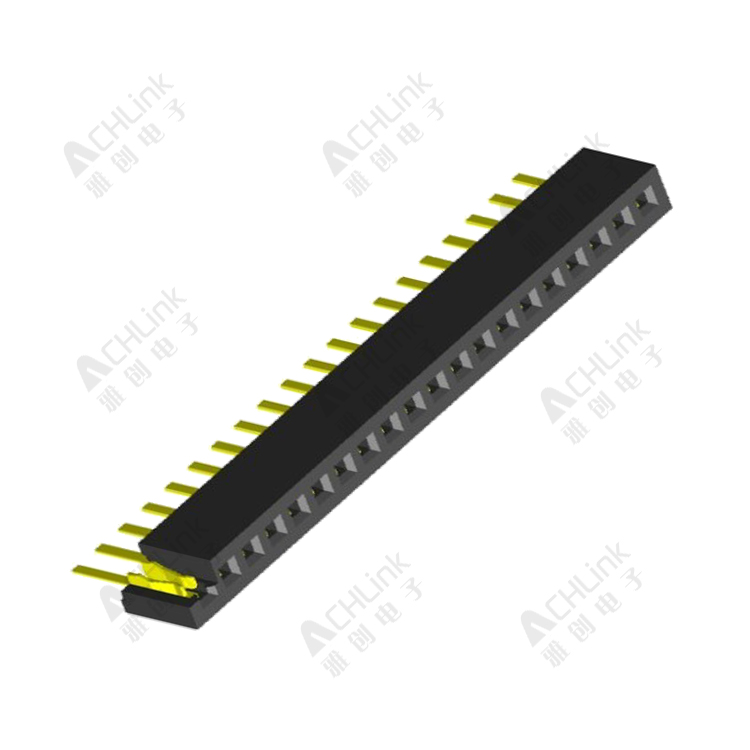

排母2.0MM 单排 180度 H=4.0MM/4.3MM/4.6MM
左滚动
  • 排母2.0MM 单排 180度 H=4.0MM/4.3MM/4.6MM
  • 排母2.0MM 单排 180度 H=4.0MM/4.3MM/4.6MM
右滚动
  • 排母2.0MM 单排 180度 H=4.0MM/4.3MM/4.6MM
PRODUCT MODEL:4035-XXX-0001
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
