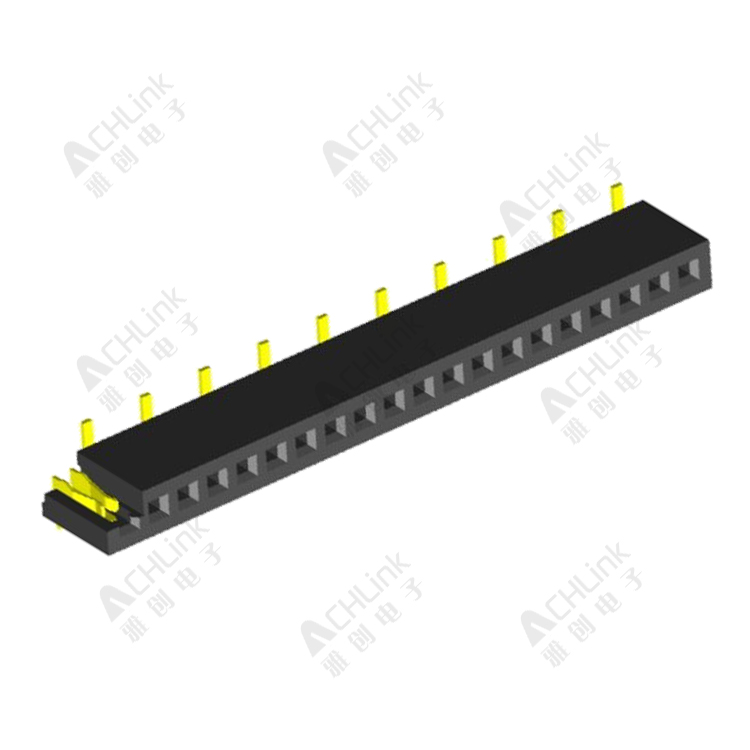

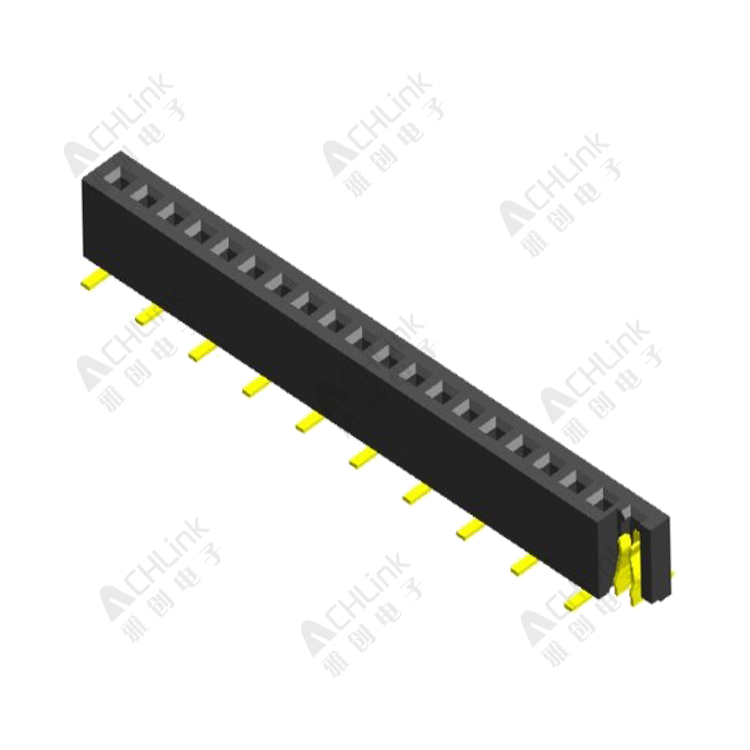

- 排母2.0MM 单排 立式SMT H=4.0MM/4.3MM/4.6MM
PRODUCT MODEL:4035-XXX-0010/11/12
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
