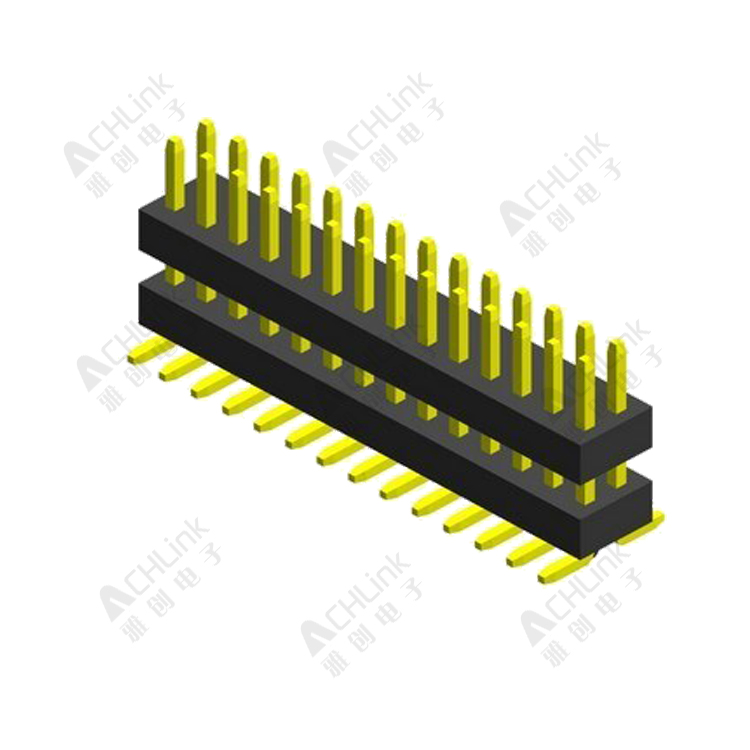

- 排针1.0*1.0MM 双排双塑 SMT H=1.50MM
PRODUCT MODEL: 4002-XXX-0007
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black
