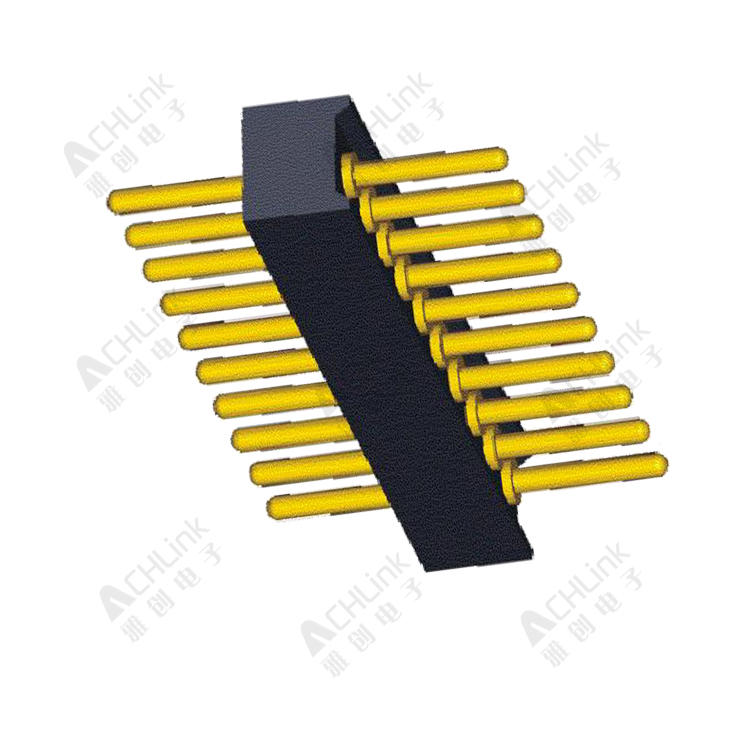

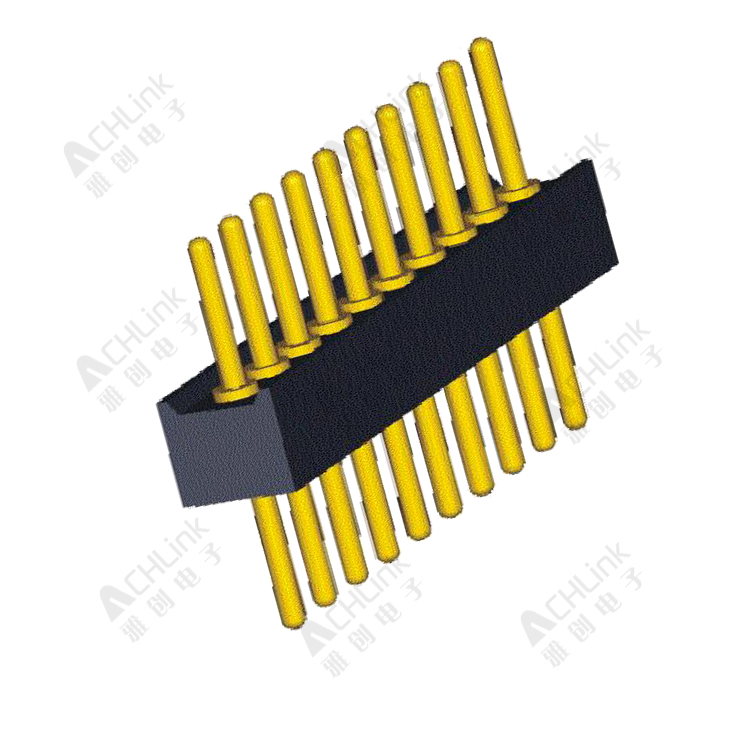

- 圆孔排针1.27MM 单排 180度 H=2.2MM
PRODUCT MODEL: 4003-XXX-0001
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black
