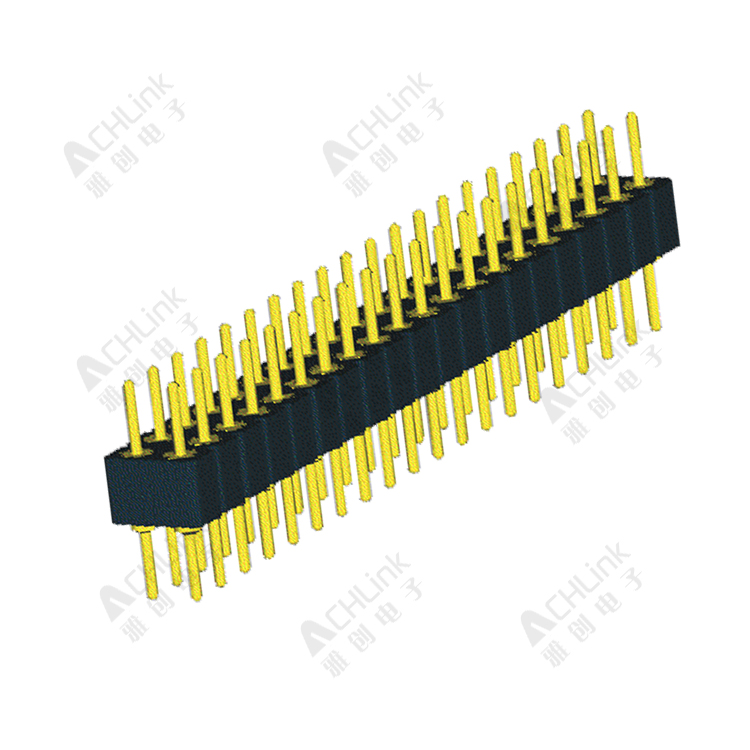

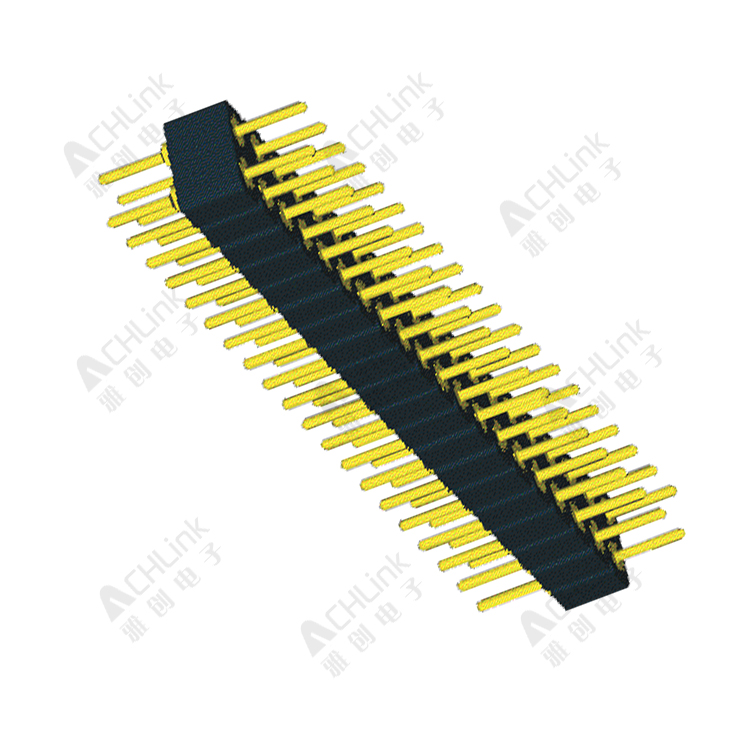

- 圆孔排针1.27*1.27MM 双排 180度 H=1.90MM
PRODUCT MODEL: 4003-XXX-0004
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black
