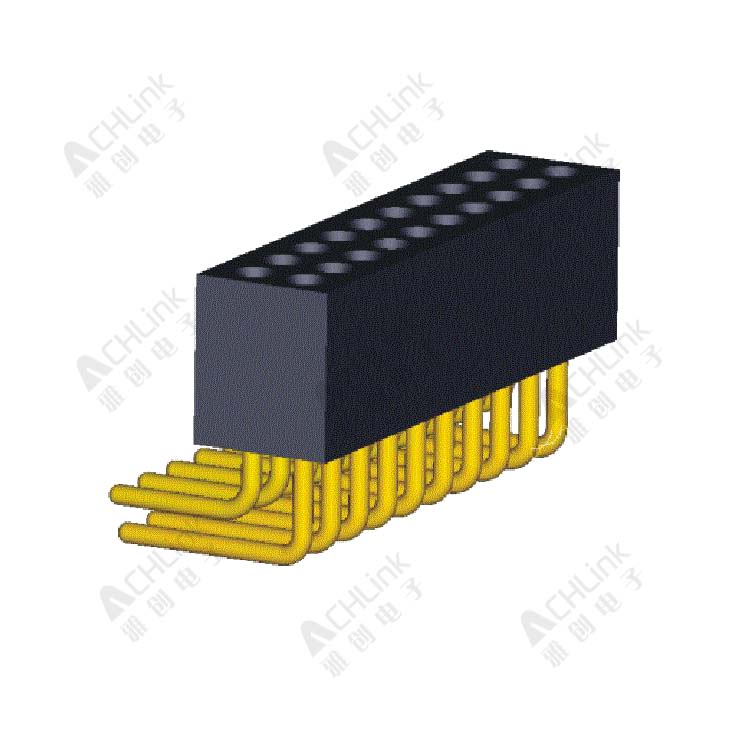

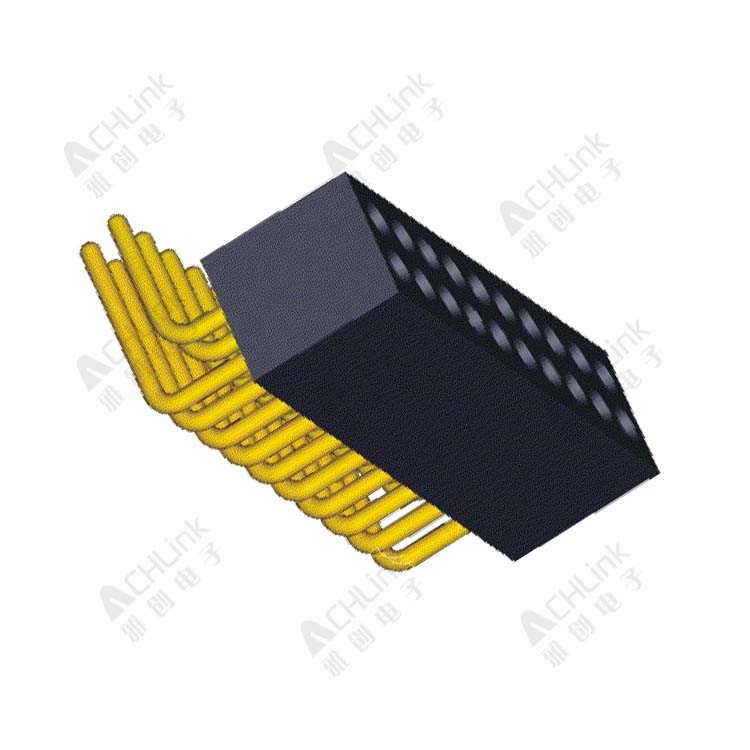

- 圆孔排母1.27MM 双排 90度 H=3.80MM
PRODUCT MODEL:4037-XXX-0005
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
