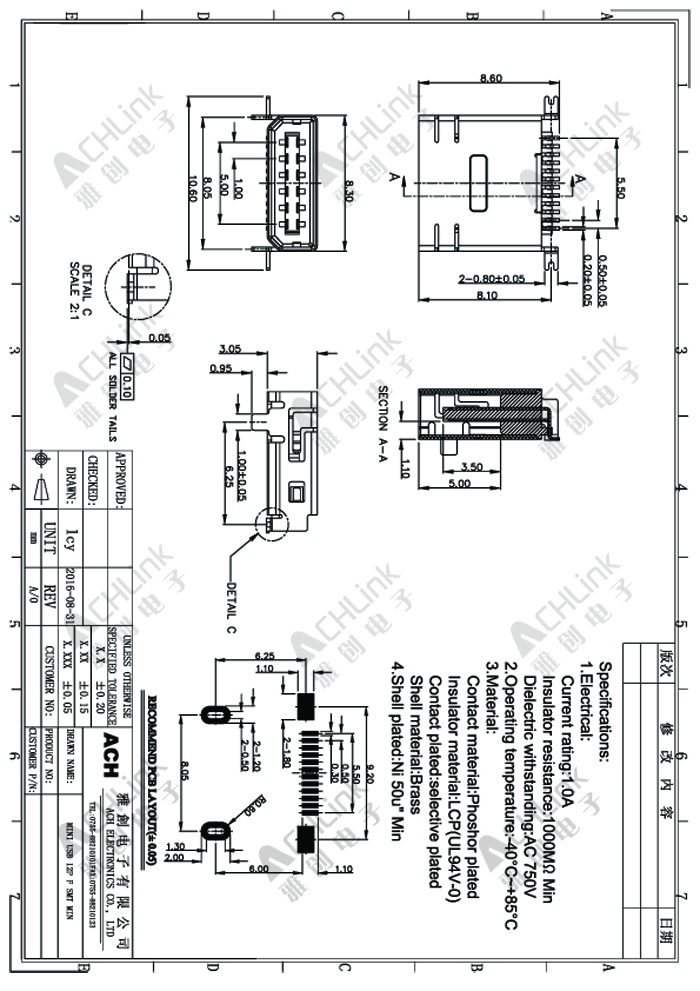

PRODUCT MODEL:1070-412-0001
Current rating:1.0A
Insulator resistance:1000MΩ Min
Dielectric withstanding:AC 750V
Operating temperature:-40°C~+85°C
Material:
Contact material:Phoshor plated
Insulator material:LCP(UL94V-0)
Contact plated:selective plated
Shell material:Brass
Shell plated:Ni 50u" Min
