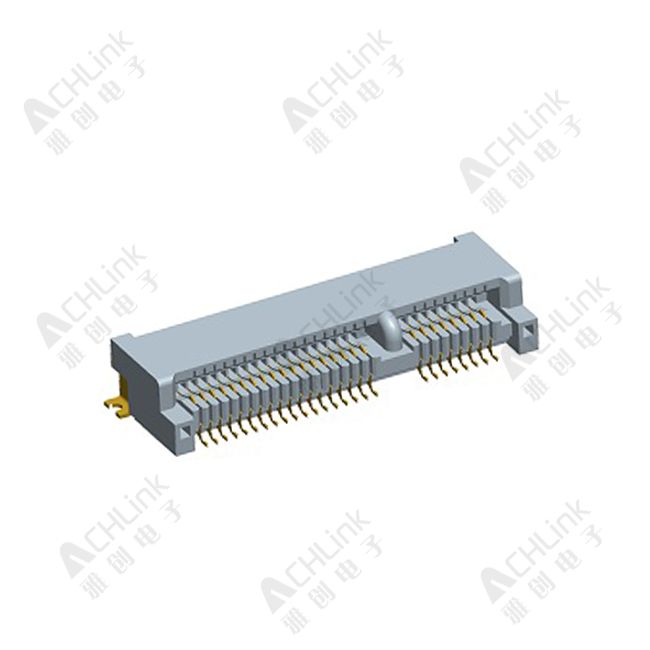

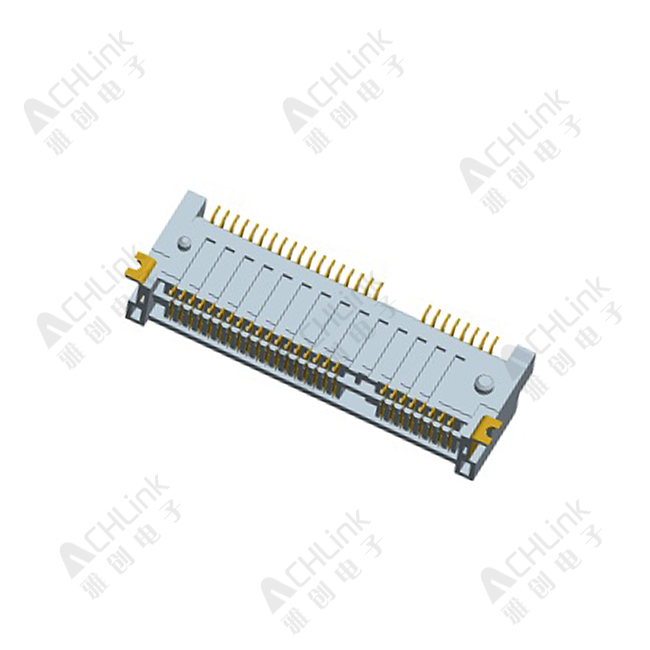

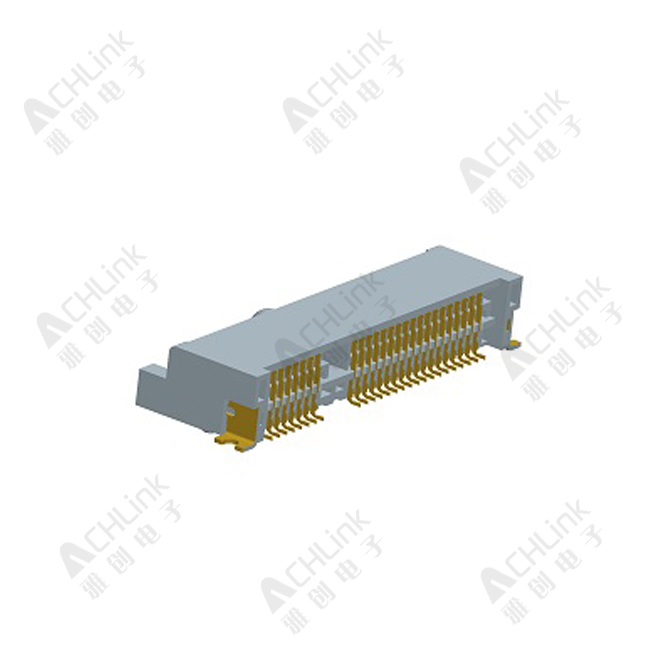

PRODUCT MODEL:5040-004-0001
1.MATERIAL:
HOUSING: LCP+30% G.F. UL94V-0 BLACK;
TERMINAL: COPPER ALLOY(C5191 T=0.20mm);
LEG: COPPER ALLOY(C2680 T=0.3mm);
2. ELECTRICAL CHARACTERISTICS:
a. VOLTAGE RATING: 50V AC PER CONTACT;
b. CURRENT RATING: 0.5 AMP PER CONTACT;
c. DIELECTRIC WITHSTANDING VOLTAGE: 300V AC RMS (Min);
d. INSULATION RESISTANCE: 500M? AT 500V DC Min;
e. CONTACT RESISTANCE: 55m? Max (INITIAL);
3. MECHANICAL CHARACTERISTICS
