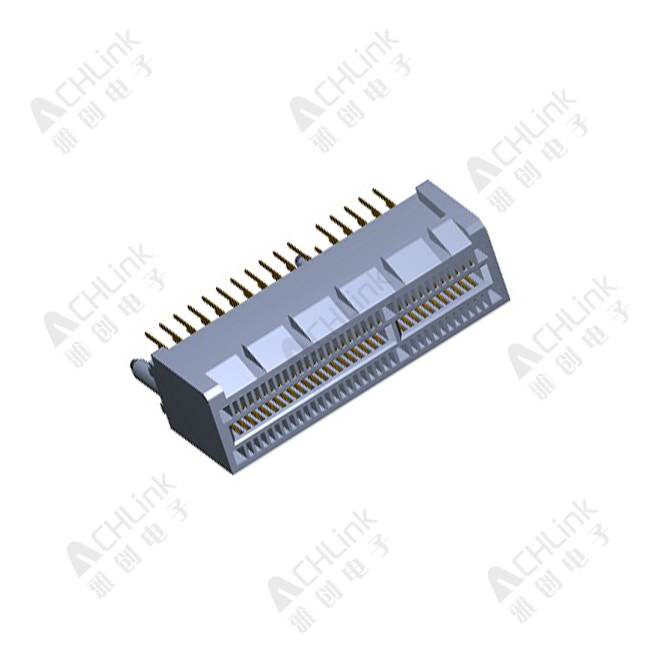

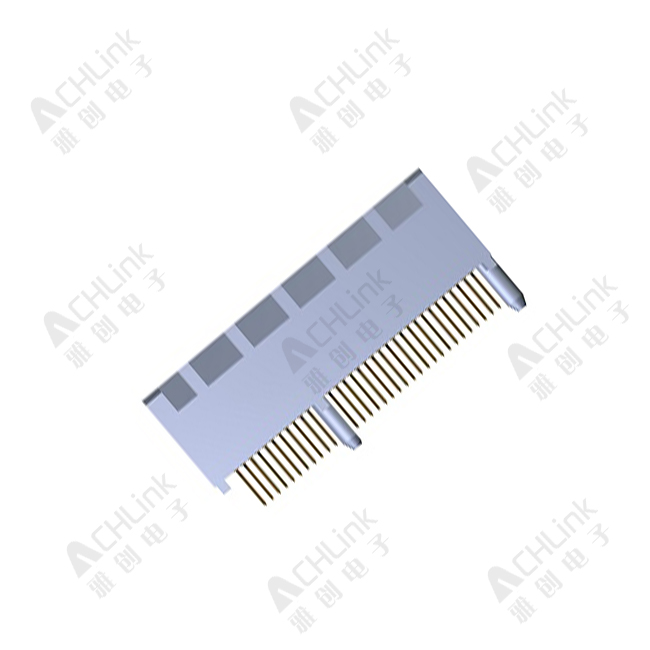

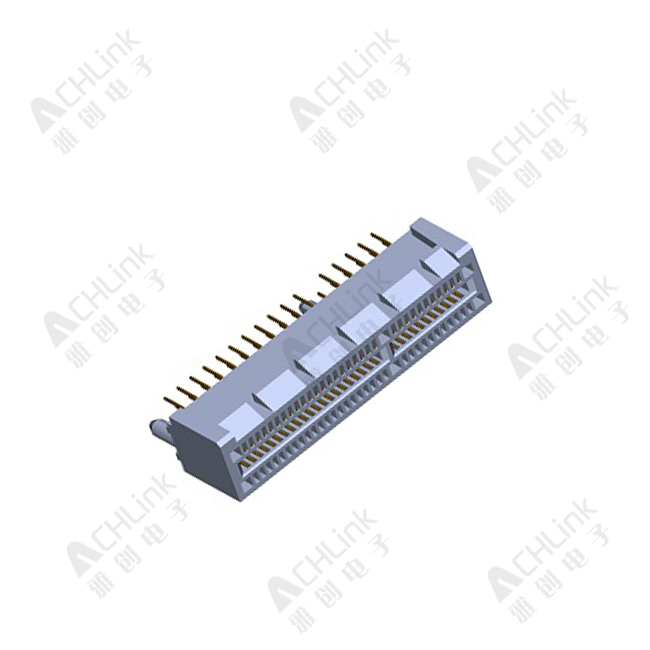

PCI-express 64Pin Slot.1.00 Pitch. W/Post. wall close style. Vert. DIP Type
左滚动
  • PCI-express 64Pin Slot.1.00 Pitch. W/Post. wall close style. Vert. DIP Type
  • PCI-express 64Pin Slot.1.00 Pitch. W/Post. wall close style. Vert. DIP Type
  • PCI-express 64Pin Slot.1.00 Pitch. W/Post. wall close style. Vert. DIP Type
右滚动
  • PCI-express 64Pin Slot.1.00 Pitch. W/Post. wall close style. Vert. DIP Type
NOTES: 1.MATERIAL SPECIFICATION 1-1.HOUSING: HIGH TEMPERATURE THERMOPLASTIC, UL94 V-0. 1-2.CONTACT: COPPER ALLOY T=0.25mm. 2.PLATING SPECIFICATION 2-1.CONTACT: NI30μ'' MIN. UNDER PLATED,GOLD FLASH PLATED ON THE FUNCTIONAL AREA OF CONTACT, TIN 80μ'' MIN. ON SOLDER AREA.
